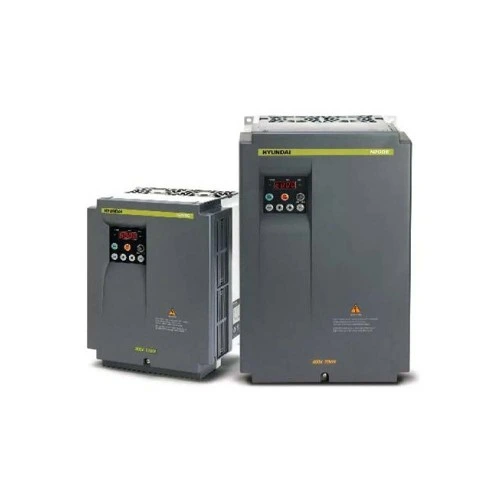

Hyundai N700E-022HF Inverter 2.2KW / 3HP
Ambient Humidity: Below 90% RH · Ambient Temperature: -10 to 50°C (unit can be designed to function outside this range) · Rated power: 3 HP / 2.2 kW · Rated Input Voltage: Three Phase 380 ~480 VAC ± 10% 50/60 Hz ± 5%
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: Hyundai Heavy Industries Model: HYUI-369 Ambient Humidity: Below 90% RH Ambient Temperature: -10 to 50°C (unit can be designed to function outside this range) Rated power: 3 HP / 2.2 kW Rated Input Voltage: Three Phase 380 ~480 VAC ± 10% 50/60 Hz ± 5% Rated Output Current: 7.2 A Rated Output Voltage: Three Phase 380 ~480 VAC (corresponding to input voltage) Storage temperature: -20 to 60°C Location: Under 1000m above sea level, indoors, away from corrosive gasses, dust, etc Vibration: 5.9N/s² (0.6G) 10 to 55Hz
