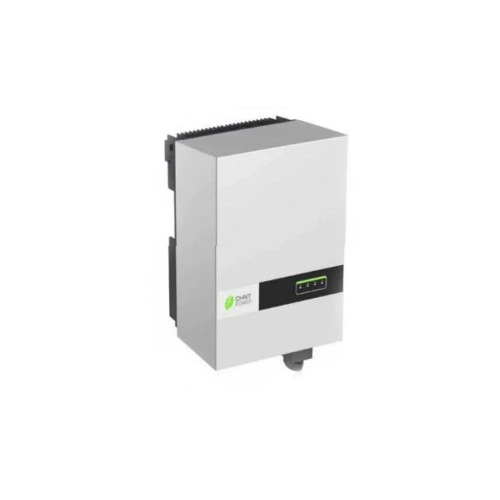

Chint 10Kw On Grid Solar Inverter
Display: LCD/LED : LED+ APP（Bluetooth） · Altitude: 4000m · DC Voltage: Max : 1000Vdc, ' Rated : 620Vdc · AC Current: Max : 16A
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: CHINT Solar Model: CHIT-245 Display: LCD/LED : LED+ APP（Bluetooth） Altitude: 4000m DC Voltage: Max : 1000Vdc, ' Rated : 620Vdc AC Current: Max : 16A Power Factor: (cos φ ) : ± 0.8（adjustable） Weight: 19.8 AC Power: Rated : 10000W, Max : 11000VA Efficiency: Max : 98.1%, Euro : 97.8% Topology: Transformerless AC Connection: Plug-in Connector Communication: RS485 （Standard） / Wi-Fi & GPRS（Optional） Cooling Method: Natural Convection DC Connection: MC4 / H4 Grid Frequency: 50Hz,60Hz / 45-55Hz,55-65Hz Ingress Protection: IP65 MPPT Voltage Range: 160 - 950Vdc, (Full Load) ; 470 - 800Vdc Rated AC Voltage/Range: 380V,400V / 277- 510V Rated DC Power: 10500W Start Voltage: 200Vdc Current: THD : ± 0.8（adjustable） DC Switch: Standard Grid Connection Type: 3W + N + PE Language: English Noise: < 25dBA Number of MPPT: 2 Operating Temperature: Range : -25℃ to +60℃ Dimensions: (W*H*D) [mm] : 380 * 480 * 176 Certifications: CQC NB/T 32004,VDE-AR-N 4105,IEC61727,B30IEC62116,VDE 0126-1-1,CNCA/CTS0002- 2014,IEC 60068,IEC61683,EN50530
