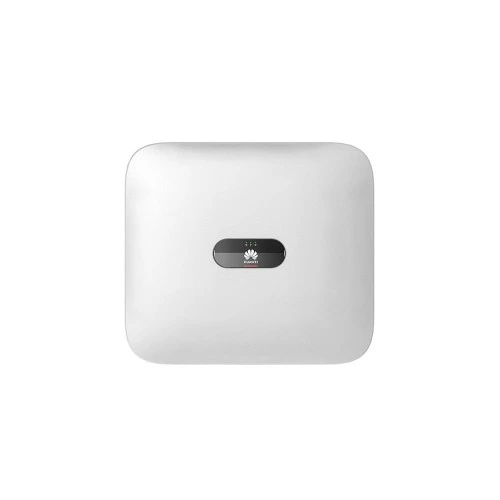

Huawei 10kW On-Grid Solar Inverter
Display: LED · DC Voltage: Max : 1100 V · Altitude: max : 4000 m · Voltage range: MPPT(T) : 470~850 V
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: Huawei Solar Model: HUAI-02 Display: LED DC Voltage: Max : 1100 V Altitude: max : 4000 m Voltage range: MPPT(T) : 470~850 V DC Current: Min : 22 A AC Current: max : 16.9 A Power Factor: (cosθ) : 0.8 Humidity: 0-100 % AC Power: Max : 11 kW Efficiency: Max : 98.4 % Min DC Voltage: Min. DC Voltage to Start Feed In : 200 V Rated AC Voltage: 230 V Rated DC Voltage: 600 V DC Input: 2 Distortion: (THD) : < 3 % Euro Efficiency: 98.1 % Frequency: 50, 60 Hz Interfaces: RS 485, WLAN Max. Efficiency: 98.7% No of feed-in phases: 3 No of MPP Trackers: 2 Operating Temperature: -25 ~ +60 ℃ Protect Feature: Anti Island Protection(ENS), Overvoltage Protection, Overcurrent Protection, Residual Current Device (RCD), Reverse Polarity Protection, Isolation Monitoring Protection Class: IP65 Weight: 17 kg Dimensions: 470x525x166 mm
