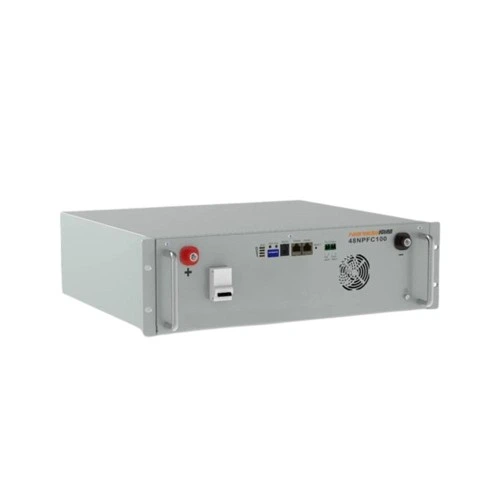

Narada 4.8kWh IP20 48NPFC100 Lithium Battery 48V 100Ah
Charge Voltage: 54.0±0.5V · Temperature Range: Discharge : -20 to + 60 C | Charge : 0 to + 60 C | Storage : 0 to + 40 C · Status Indicators: SOC / ALM / RUN · Dimensions ( W x D x H ): 442.5 mm 400 mm 133 mm
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: Narada Model: NARA-03 Charge Voltage: 54.0±0.5V Temperature Range: Discharge : -20 to + 60 C | Charge : 0 to + 60 C | Storage : 0 to + 40 C Status Indicators: SOC / ALM / RUN Dimensions ( W x D x H ): 442.5 mm 400 mm 133 mm Communication in Parallel: 8 modules in parallel maximum Communication Ports: RS232 / RS485*2 Discharge Current: Max : 100A Discharge End Voltage: 40.5V Rated Voltage: 48V Charge Current: (Recomm.) 20A | max : 100A Humidity: 5% to 95% Rated Capacity: 100Ah (0.2C to 40.5V @ 25 oC) Temperature Recommendation: Discharge : +15 to + 35 C | Charge : +15 to + 35 C | Storage : +15 to + 30 C Terminal Size: M8 (Screw size) Weight: Approximate 38.5 Kg
