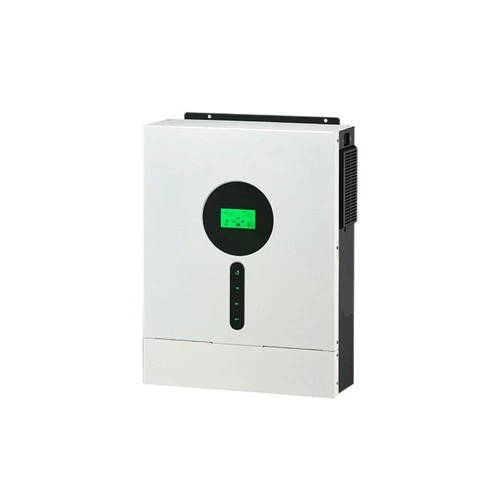

NS VM II 3.6Kw PV5000 Solar Hybrid Inverter
communication interface: USB/RS232 · Transfer Time: 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) · Battery Voltage: 24 VDC · Floating Charge Voltage: 27 VDC
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: Ns Solar Model: WNS-01 communication interface: USB/RS232 Transfer Time: 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) Battery Voltage: 24 VDC Floating Charge Voltage: 27 VDC Rated Power: 3600VA / 3600W Selectable Voltage Range: 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) Surge Power: 7200VA Frequency Range: 50 Hz/60 Hz (Auto sensing) Max PV input current: 27A Maximum PV Array Power: 5000W Operating Temperature: -10°C to 50°C Solar Charger Type: MPPT Type: Solar Hybrid Inverter Voltage: 230 VAC Waveform: Pure Sine Wave Weight: 9.5kgs Dimension: 107 x 322.6x 420.3 mm
