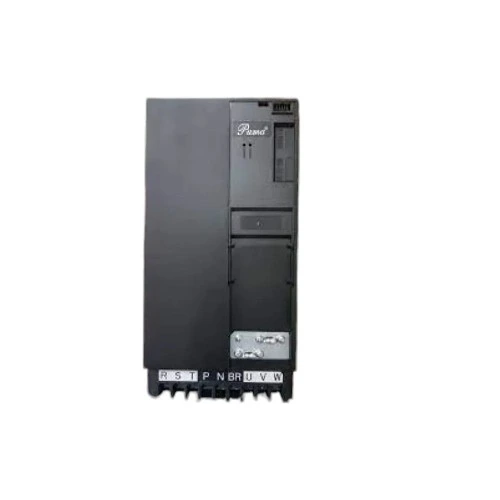

Puma P200-7.5kW Variable Frequency Drive
Altitude: Lower than 1000m · Ambient Temperature: -10°C~+40°C (ambient temperature at 40°C~50°C, please keep derated use ) · Voltage range: SP1S: DC 250~ 400V to 1-phase AC 220V SP1: DC 250~ 400V to 3-phase AC 220V SP3: DC 350~ 750V to 3-phase AC 380V · Power Factor: >0.99
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: Model: PUMA-01 Altitude: Lower than 1000m Ambient Temperature: -10°C~+40°C (ambient temperature at 40°C~50°C, please keep derated use ) Voltage range: SP1S: DC 250~ 400V to 1-phase AC 220V SP1: DC 250~ 400V to 3-phase AC 220V SP3: DC 350~ 750V to 3-phase AC 380V Power Factor: >0.99 Output Frequency: 0~50/60 (Hz) AC Output Current: 17A at 3-phase 380V Rated Power: 7.5kW Storage temperature: -20°C~+60°C Cooling: Forced Air cooling DC Voltage: 280V DC Voltage Max: 750V Humidity: Less than 95%RH, without condensing MPPT Range Full Load: 350~750(V) Protection Class: IP20 Type: 7.5 kw Inverter Vibration: Less than 5.9 m/s2 (0.6 g) Input Voltage: DC 350~ 750 (V), AC 380~460 (V) at 3-phase (When the input is AC, the inverter output voltage is equal to the input voltage)
