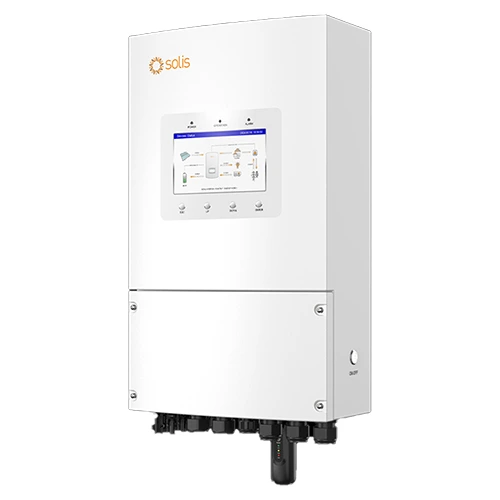

Solis 12kW LV 3-Phase Hybrid Solar Inverter
Max. Input Current: 20 A / 40 A · Display: LCD + Bluetooth + APP · Temperature Range: -40 ~ +60°C · Topology: Non-isolated
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: Solis Model: SOLS-31 Max. Input Current: 20 A / 40 A Display: LCD + Bluetooth + APP Temperature Range: -40 ~ +60°C Topology: Non-isolated AC Connection: Screw terminal DC Connection: MC4 Quick connection plug (PV) & Screw terminal (Battery) Ingress Protection: IP66 MPPT Voltage Range: 2000-850 V Rated Voltage: 550 V Start-up Voltage: 160 V apparent output power: 12 kVA Battery Type: Li-ion Battery Voltage Range: 40 - 60 V Communication: CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN connection standard: NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, Sri Lanka, EN 50438L, Vietnam, PEA/MEA Cooling: Intelligent redundant fan-cooling Frequency: 50 Hz / 60 Hz Max. Charge / Discharge Current: 250 A Max. input voltage: 1000 V Max. usable PV input power: Max. usable PV input power MPPT number/Max. input strings number: 2/3 operation altitude: 4000 m Rated Grid Voltage: 380 V / 400 V Safety: IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3 Short Circuit Current: 30 A / 50 A Weight: 42 kg Dimensions: 430*660*295 mm
