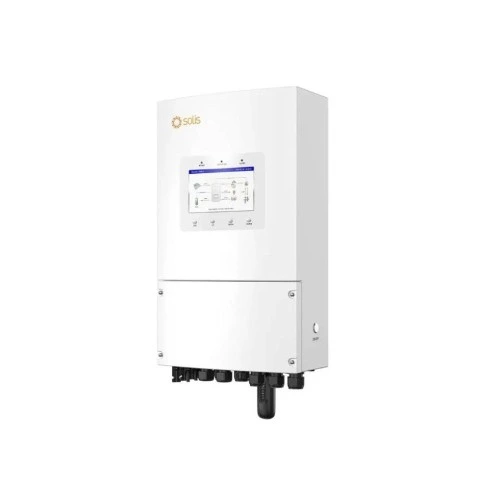

Solis 6kW LV Single Phase Hybrid Solar Inverter

Product specifications

Brand: Solis Model: SOLS-22 Max. Input Current: 40 A Display: 7.0" LCD display & Bluetooth + APP Rated grid frequency / rated grid voltage: 50 Hz / 60 Hz Charge Voltage: 6 kW Temperature Range: -40 ~ + 60°C Power Factor: > 0.99 (0.8 leading - 0.8 lagging) Input Current: 16 A / 16 A Input Voltage Range: 187 - 253 V Topology: High frequency isolation (for battery) AC Connection: Terminal Block DC Connection: MC4 plug (PV port) / Terminal Block (BAT port) Discharge Current: 135 A Ingress Protection: IP66 Max. Output Current (A): 27.3 A / 26.1 A MPPT Voltage Range: 90 - 435 V Rated Voltage: 330 V Start-up Voltage: 90 V apparent output power: 6 kVA Battery Type: Li-ion / Lead-acid Battery Voltage Range: 40 - 60 V Communication: RS485, CAN, Optional: Wi-Fi, GPRS, LAN connection standard: NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150 Cooling: Intelligent fan-cooling Max PV input current: 9.6 kW Max. Efficiency: 96.2% MPPT number/Max. input strings number: 2 / 2 operation altitude: Max. operation altitude Operation phase: L/N/PE Rated Grid Voltage: 220 V / 230 V Rated Output Power: 6 kW Safety: IEC/EN 62109-1/-2, EN 61000-6-2/-3 Short Circuit Current: 20 A / 20 A Weight: 23.5 kg Input Voltage: 500 V Dimensions: 335 × 560 × 253 mm Frequency Range: 45 - 55 Hz / 55 - 65 Hz
