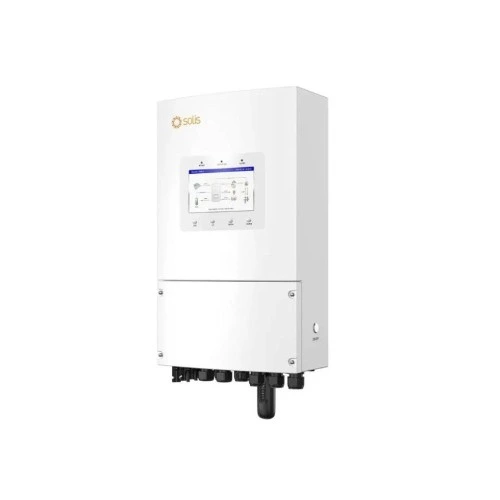

Solis 8kW LV Single Phase Hybrid Solar Inverter (S6-EH1P8K-L-PLUS)

Product specifications

Brand: Solis Model: SOLS-23 Max. Input Current: 32 A / 32A Display: LCD Rated grid frequency / rated grid voltage: 50 Hz / 60 Hz Temperature Range: -25~+60ºC Power Factor: >0.99 (0.8 leading - 0.8 lagging) Relative Humidity: 0-100% Efficiency: 96.1% Topology: Transformerless AC Connection: Quick connection plug DC Connection: MC4 connector Ingress Protection: IP66 Max. Output Current (A): 36.4 A Max. Output Power: 8kVA MPPT Voltage Range: 90-550 V Rated Voltage: 330 V Start-up Voltage: 120 V Communication: RS485, Optional: Wi-Fi, GPRS connection standard: G98(G98 for 2.5K-3.6K) or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA Cooling: Natural convection Max. input voltage: 600 V MPPT number/Max. input strings number: 2 operation altitude: 4000 m Output over Current Protection: Yes Rated AC Output Power: 8kW Rated Grid Voltage: 1/N/PE, 220 V / 230 V Safety: IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3 Short Circuit Current: 40 A / 40 A Weight: 22.2 kg Dimensions: 335*560*227 mm
