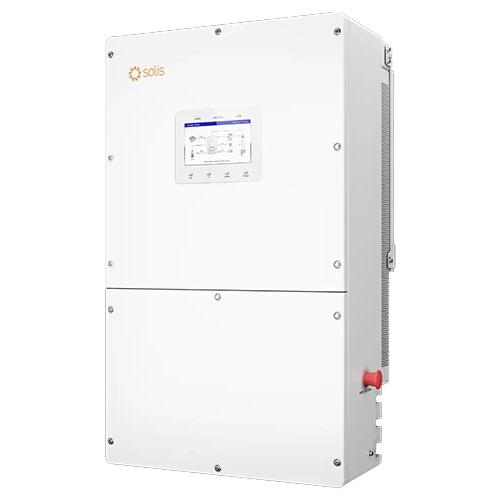

Solis 20kW HV 3-Phase Hybrid Solar Inverter

Product specifications

Brand: Solis Model: SOLS-25 Max. Input Current: 30.4 A / 28.9 A Display: LED + Bluetooth + APP Rated grid frequency / rated grid voltage: 50 Hz / 60 Hz Power Factor: >0.99 (0.8 leading - 0.8 lagging) Relative Humidity: 0-95% Efficiency: 97.7% Input Power: 20 kW Topology: Transformerless AC Connection: OT terminal Ingress Protection: IP66 Max. Output Current (A): 30.4 A / 28.9 A MPPT Voltage Range: 200-850 V Rated Frequency: 50 Hz / 60 Hz Rated Input Current: 45.6 A / 43.3 A Rated Input Voltage: 3/N/PE, 380 V / 400 V Rated Output Current: 30.4 A / 28.9 A Rated Voltage: 600 V Start-up Voltage: 160 V apparent output power: 20 kVA Battery connection: OT terminal Battery Type: Li-ion Battery Voltage Range: 120-800 V Communication: CAN, RS485, Optional: Wi-Fi, Cellular, LAN connection standard: EN 50549-1, VDE4105 CEI 0-21, CEI 0-16, NC-RFG TypeB, NRS 097-2-1 ED 2.1 Cooling concept: Intelligent redundant fan-cooling Max. Charge / Discharge Current: 50 A Max. Charge / Discharge Power: 20 kW Max. input power per MPPT: 9 kW Max. input voltage: 1000 V Max. usable PV input power: 32 kW MPPT number/Max. input strings number: 4/4 Operating ambient temperature range: -25 ~ +60°C operation altitude: 2000 m PV connection: MC4 connector Rated Grid Voltage: 3/N/PE, 380 V / 400 V Rated Output Power: 20 kW Recommended max. PV array size: 40 kW Safety: IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3, IEC 61000-2 Self-consumption (night): <25 W Short Circuit Current: 30 A / 30 A / 30 A / 30 A Weight: 31.7 kg Dimensions: 599*546*243 mm Input Power: 30 kW Input frequency: 50 Hz / 60 Hz
