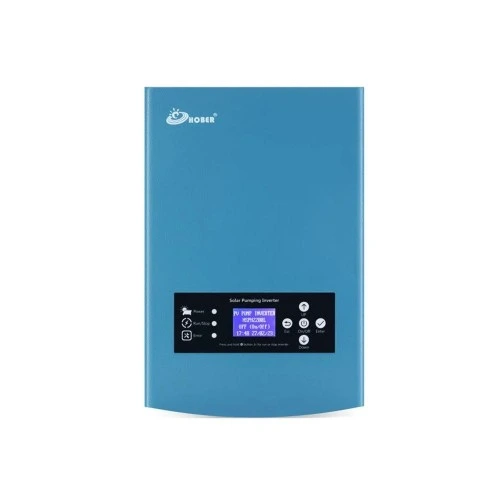

Knox HOBER-HSPH5500H 5.5 kW 3 Phase Solar Pump Inverter
Display: LCD Display · Vmp Voltage: 400V · Output Frequency: 50-60Hz (support Program range 15 to 60Hz) · Efficiency: 97%
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: Knox Model: KNOX-48 Display: LCD Display Vmp Voltage: 400V Output Frequency: 50-60Hz (support Program range 15 to 60Hz) Efficiency: 97% Input Current: 14A Cooling Method: Force Cooling By Fan(IP68) Rated Input Current: 14A 4G/wifi monitor & controller: Optional Drive Mode: Variable Frequency Drive 3 Phase Humidity: 95%RH Hybrid Mode: AC Supplement automatic when solar low power and ac disconnect while solar power recovery Max Adapted AC Pump Horse: 7.5 HP Max Adapted AC Pump Power: 5500W Max MPPT Efficiency: 99% Max Voc Voltage: 800V Noise: <50dB Note: Automatic MMPT function to identify the Voc and Vmp od solar panel, No need programming Number off strings: 1 Operating Temperature Range: -10 t0 60, Above 60°C Need to derate load Rated Out Current: 14A Recommend Vmp Voltage: 500vmp<DC input<750VOC (Only Solar Input) 540Vmp<DC input <700Voc (Only hybrid Input) Using altitude: <3000m,Above 3000m need to derate load Voltage: 3 Phase 380/400/440V Water Level Sensor Well Tank: Yes WaterProof: IP65 Weight: 7.5kg Dimensions: 480*310*200mm Output Voltage: 380/400/440V
