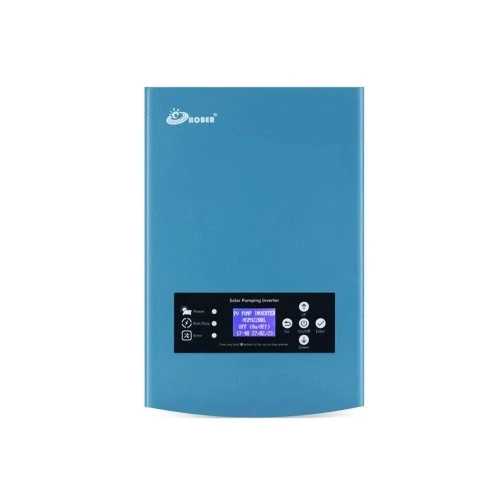

Knox HOBER-HSPH9200H 9.2 kW 3 Phase Solar Pump Inverter
Vmp Voltage: 400 · Output Frequency: 50-60Hz (support Program range 15 to 60Hz) · Efficiency: 99% · Input Current: 33A
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: Knox Model: KNOX-50 Vmp Voltage: 400 Output Frequency: 50-60Hz (support Program range 15 to 60Hz) Efficiency: 99% Input Current: 33A Cooling Method: Force Cooling by Fan (IP68) Rated Input Current: 21A 4G/wifi monitor & controller: optional Drive Mode: Variable Frequency drive 3 phase Humidity: 95%RH Hybrid Mode: AC Supplement automatic when solar low power and ac disconnect while solar power recovery Max Adapted AC Pump Horse: 12.5 HP Max Adapted AC Pump Power: 9.2kW Max Voc Voltage: 800V Noise: <50dB Note: Automatic MMPT function to identify the Voc and Vmp od solar panel, No need programming Number off strings: 2 Operating Temperature Range: -10 t0 60, Above 60°C Need to derate load Rated Out Current: 21A Recommend Vmp Voltage: 500vmp<DC input<750VOC (Only Solar Input) 540Vmp<DC input <700Voc (Only hybrid Input) Using altitude: <3000m,Above 3000m need to derate load Water Level Sensor Well Tank: Yes WaterProof: IP65 Weight: 10Kg Dimensions: 500*350*220mm Output Voltage: 380/400/440
