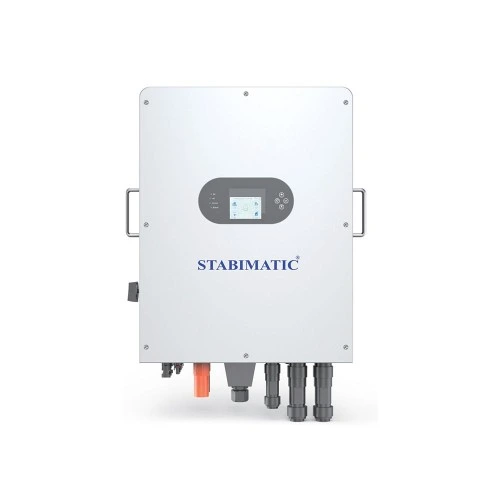

Stabimatic 12KW IP65 Three Phase Hybrid Solar Inverter
Maximum Efficiency: 98% or higher · Altitude: 2000 meters · Overload protection: Prevents damage due to excessive power demands · Battery Voltage: 48V DC
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: STABIMATIC Model: STAC-184 Maximum Efficiency: 98% or higher Altitude: 2000 meters Overload protection: Prevents damage due to excessive power demands Battery Voltage: 48V DC MPPT Voltage Range: 180V to 800V AC Output Voltage: 220V-240V (three-phase output) Battery Charging Current: 120A Max Dc input voltage: 1000V MPPT Efficiency: >99.9% (maximizes energy harvested from solar panels) Nominal Output Frequency: 50Hz or 60Hz (region-dependent) Number of MPPTs: Dual MPPT for better optimization of solar energy production, even with panels facing different directions or partial shading. Operating Temperature Range: -25°C to +60°C Power factor: 1 (unity power factor for maximum efficiency) Protection Rating: IP65 Rated Output Power: 12 kW (AC output) Startup voltage: Typically 150V (depending on panel configuration) Weight: 20-25 kg Dimensions: 500mm x 500mm x 180mm
