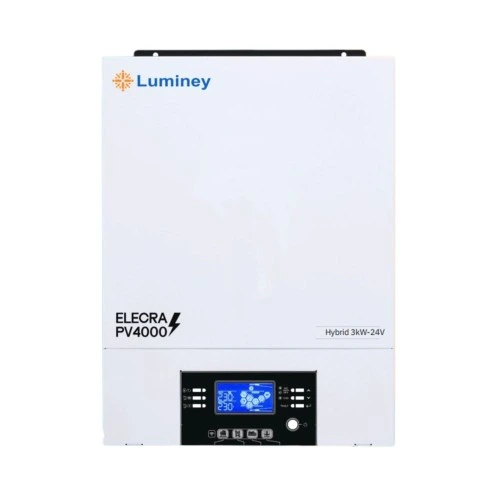

Luminey Elecra 3kW 24V PV4000 Hybrid Solar Inverter
Charge Voltage: 27 VDC · communication interface: USB/RS232/RS485/WiFi/Dry-contact · Voltage range: 170-280 VAC (For Personal Computers)90-280 VAC (For Home Appliances) · Battery Voltage: 24 VDC
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: Luminey Model: LUMY-02 Charge Voltage: 27 VDC communication interface: USB/RS232/RS485/WiFi/Dry-contact Voltage range: 170-280 VAC (For Personal Computers)90-280 VAC (For Home Appliances) Battery Voltage: 24 VDC Efficiency: 90% ~ 93% Operating Voltage: 120 ~ 450 VDC Transfer Time: 15 ms (For Personal Computers) 20 ms (For Home Appliances) Array Power: 4000W Rated Power: 3000VA/3000W Storage temperature: -15°C to 60°C Surge Power: 6000VA Charger Type: MPPT Frequency Range: 50 Hz/60 Hz(Auto sensing) Humidity: 5% to 95% Relative Humidity (Non-condensing) Operating Temperature: -10°C to 50°C Overcharge Protection: 33 VDC Voltage: 230 VAC Waveform: Pure sine wave Weight: 9 kgs Dimension: 115 x 300 x 400
