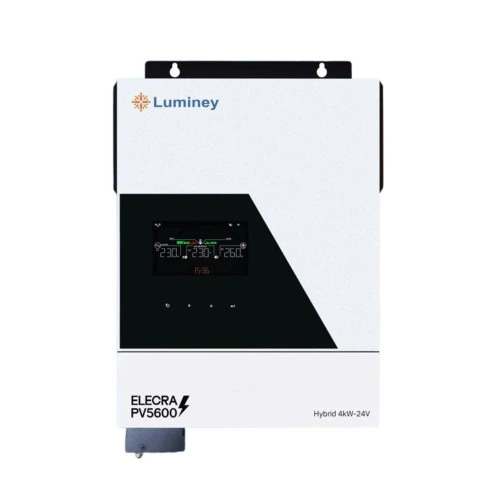

Luminey Elecra 4kW 24V PV5600 Single Phase Hybrid Solar Inverter
Charge Voltage: 27 VDC · communication interface: USB/RS232/RS485/WiFi/Dry-contact · Voltage range: 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) · Battery Voltage: 24 VDC
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: Luminey Model: LUMY-03 Charge Voltage: 27 VDC communication interface: USB/RS232/RS485/WiFi/Dry-contact Voltage range: 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) Battery Voltage: 24 VDC Efficiency: 90% ~ 93% Transfer Time: 10 ms (For Personal Computers) 20 ms (For Home Appliances) Rated Power: 4000VA/4000W Surge Power: 8000VA Frequency Range: 50 Hz/60 Hz (Auto sensing) Humidity: 5% to 95% Relative Humidity (Non-condensing) Operating Temperature: -10°C to 50°C Overcharge Protection: 33 VDC Voltage: 230 VAC Waveform: Pure sine wave Weight: 10 kgs Dimension: 119 x 313.6 x 457.5
