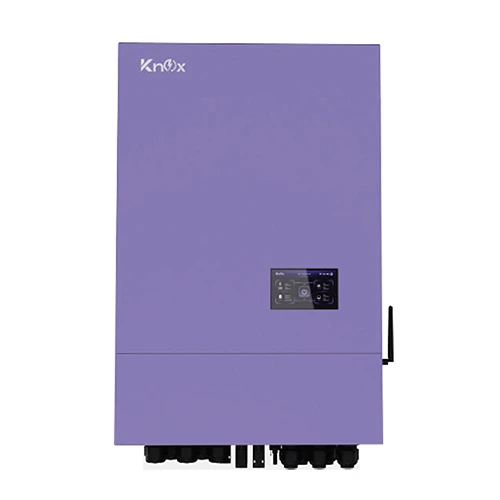

Knox Zapher 11.2kW IP54 Hybrid Solar Inverter (XZ-11.2kW-18000pV)
Display: LCD / Touch Screen Interface · Parallel Operation: Up to 6 Units · Battery Voltage: 48V DC · Rated power: 11.2kW
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: Knox Model: KNOX-99 Display: LCD / Touch Screen Interface Parallel Operation: Up to 6 Units Battery Voltage: 48V DC Rated power: 11.2kW Communication Ports: USB, RS232, RS485, CAN, Wi-Fi Ingress Protection: IP54 MPPT Voltage Range: 90V – 450V DC Surge Power: Up to 22,000VA Battery Compatibility: Lithium-Ion & Lead-Acid Batteries DC Voltage Max: 500V DC Humidity: 0–90% RH (Non-Condensing) Monitoring Application: Mobile App & Wi-Fi Monitoring MPPT: Dual MPPT Operating Temperature: -10°C to +50°C Phase: Single Phase Protection Features: Overload, Short Circuit, Over Temperature, Over Voltage, Reverse Polarity PV input power: Up to 13,000W Rated AC Output Power: 11,000–11,200W Waveform: Pure Sine Wave
