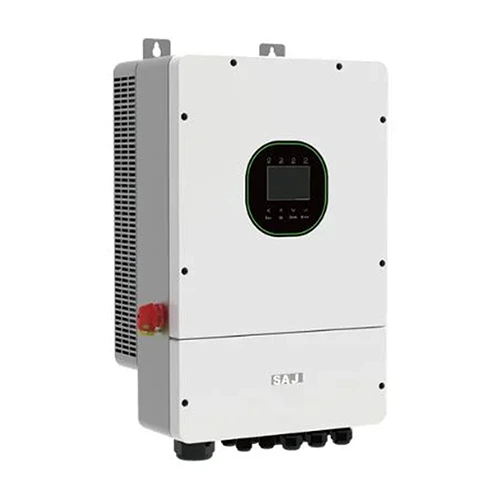

SAJ H2 12kW Single-Phase IP65 Hybrid Solar Inverter

Product specifications

Brand: SAJ Model: WSAJ-15 Efficiency: 97.6 DC Input Current: 40A / 40A DC Input Power: 19.2kW Ingress Protection: IP65 MPPT Voltage Range: 90–480V Output Current Range: 54.6A Rated DC Voltage: 360V Rated Output Current: 52.2A @ 230V Start Voltage: 80V AC Voltage: 220/230/240V AC voltage range: 180–280V Battery Type: LiFePO₄ / Lead-Acid Battery Voltage Range: 40–60V Charge / Discharge Current: 240A Communication: Wi-Fi / Ethernet / 4G Optional Cooling: Intelligent Fan Cooling DC Voltage: 500V Frequency: 50/60Hz Max. PV Array Power: 24kWp Noise Level: <50dBA Number of MPPTs: 2 Operating Temperature: -40°C to +60°C Phase: Single Phase Power factor: 0.8 Leading – 0.8 Lagging Rated Output Power: 12kW Short-circuit Current (Isc): 50A / 50A Weight: 29kg Dimensions: 590 × 380 × 241mm
