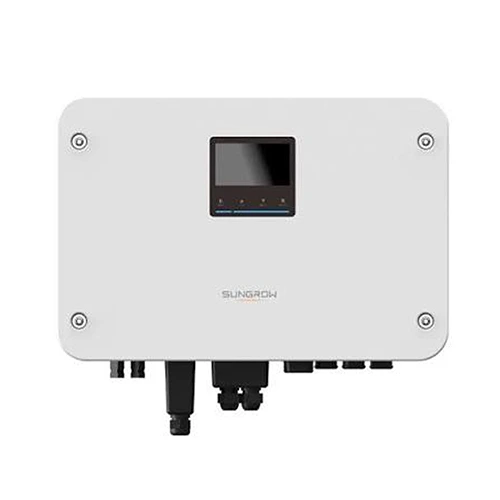

Sungrow 6kW Single Phase IP65 Hybrid Solar Inverter
Display: LCD digital touchscreen & LED indicator · Efficiency: 96.7% · AC Output Current: 27.3 A · Ingress Protection: IP65
Price checked 29 Sept 2026. Confirm current availability with our team.
Product specifications
Brand: Sungrow Model: SUNW-22 Display: LCD digital touchscreen & LED indicator Efficiency: 96.7% AC Output Current: 27.3 A Ingress Protection: IP65 Rated AC Voltage: 220 V / 230 V / 240 V AC voltage range: 154–276 V Battery Type: Li-ion Battery Battery Voltage Range: 40–60 V Charge / Discharge Current: 135 A / 135 A Communication: CAN, RS485, Ethernet (optional), WLAN (optional) Frequency: 50 Hz / 60 Hz Harmonic Distortion: <3% Number of MPPT: 2 Operating voltage range: 40–425 V Power factor: >0.99 at default value at rated power PV Input Current (A): 40 A (20 A / 20 A) PV input power: 12,000 Wp PV Input Voltage: 500 V Rated AC Output Power: 6,000 W Rated PV Input Voltage (V): 360 V Short-circuit Current (Isc): 50 A (25 A / 25 A) Startup voltage: 40 V / 50 V
