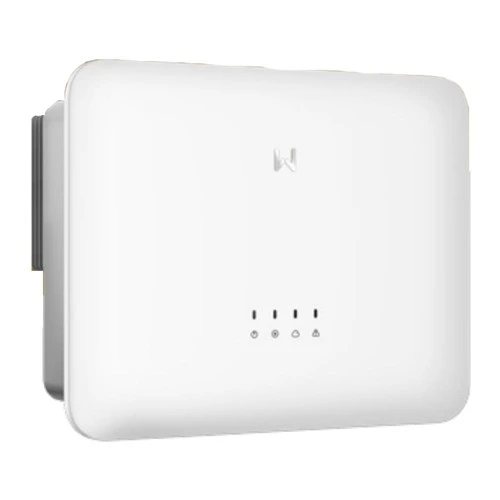

Goodwe 15Kw On-Grid Solar Inverter

Product specifications

Brand: GOODWE Model: GOOW-04 Nominal Output Frequency (Hz): 50/60 Anti-island Protection Monitoring: Integrated Input Reverse Polarity Protection: Integrated Insulation Resistor Detection: Integrated Max Input Current (A): 22/11 Max. Output Apparent Power (VA): 16500 Max. Output Current (A): 24 Max.Short Current (A): 27.6/13.8 MPPT Range of load (V): 480~850 No. of input Strings per Tracker: 2/1 Output THDi (@Nominal Output): <2% Start Voltage [V]: 180 Max. Efficiency: 98.3% No. of MPP Trackers: 2 Output over Current Protection: Integrated Output Power Factor: ~1(Adjustable from 0.8 leading to 0.8 lagging) Euro Efficiency (at 600Vdc): 98.0% Max. DC power [W]: 19500 Max. DC Voltage [V]: 1000 MPPT Voltage Range [V]: 200-800 Nominal DC Voltage [V]: 620 Nominal Output Power (W): 15000 Nominal Output Voltage (V): 400, 3L/N/PE Open Short Protection: Integrated Residual Current Monitoring Unit: Integrated
